EasyTend
The EasyTend is a perfect marriage of cobot + controls + base to kick-off your project quickly.
Includes:
- Welded steel design provides rigid base for mounting robot
- Lift system allows wheels to be lowered for quick redeployment
- The surface height can be adjusted from 850mm – 1000mm
- 880mm x 880mm extruded work surface provides maximum flexibility for any application.
- Optional Equipment:
- Side Extensions (extrusions, sheet metal pockets, peg board)
- Pneumatics Kit
- Vacuum Kit
- Safety Laser Kit

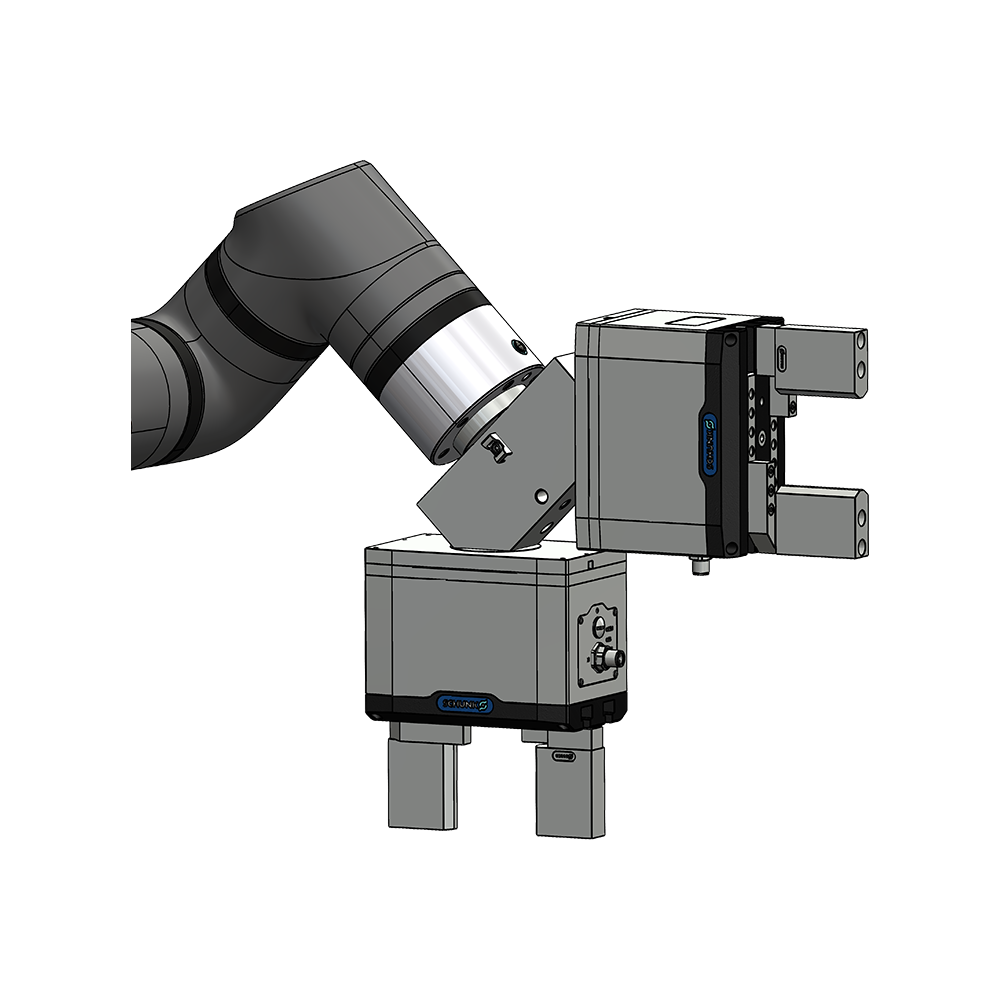

- End-Of-Arm-Tooling available for single or dual grippers to hand blanks or parts up to 25 kg
- Cobot sizes 3 kg, 5 kg, 10 kg, 20 kg, 30 kg
Related Products
| Standard Models | Part # Breakdown |
| MS-EB-R3-P2-V1-S0-X1 (UR10e) | MS-EB Mechatronic Systems EasyBase Pedestal |
| MS-EB-R5-P2-V1-S0-X1 (UR20) | -R3 UR10e Robot |
| MS-EB-R6-P2-V1-S0-X1 (UR30) | -P2 Teach Pendant, 3PE |
| -V1 Power Input: 115VAC, Single Phase | |
| MS-EB-R1-P1-V1-S0-X1 (UR3e) | -S0 Safety Sensors not included |
| MS-EB-R1-P1-V1-S0-X1 (UR5e) | -S0 Safety Radar Controller not included |
| -X1 English |
| Optional Equipment | Description |
| MS-EGK25-G1-I50 | EGK25, Single Gripper, ISO 50 |
| MS-EGK25-G2-I50 | EGK25, Dual Gripper, ISO 50 |
| MS-EGK50-G1-I50 | EGU50, Single Gripper, ISO 50 |
| MS-EGK50-G2-I50 | EGU50, Dual Gripper, ISO 50 |
| MS-EGK60-G1-I50 | EGU60, Single Gripper, ISO 50 |
| MS-EGK60-G2-I50 | EGU60, Dual Gripper, ISO 50 |
| MS-EGK70-G1-I80 | EGU70, Single Gripper, ISO 80 |
| MS-EGK70-G2-I80 | EGU70, Dual Gripper, ISO 80 |
| MS-EB-EXT-S-E-90 | Extension Kit 90°, 880x440mm, Extrusions |
| MS-EB-EXT-S-E-135 | Extension Kit 135°, 880x440mm, Extrusions |
| MS-EB-EXT-S-G-90 | Extension Kit 90°, 880x440mm, Sheet Metal Grid |
| MS-EB-EXT-S-G-135 | Extension Kit 135°, 880x440mm, Sheet Metal Grid |
| MS-EB-SK02 | Dual Laser Scanner Kit |
| MS-EB-PK-4V | Pneumatics Kit, (4x) Valves, Air Prep Assembly |
| MS-EB-VK-2G | Vacuum Generator Kit (2x) |
| Flier | EasyTend Flexible Cobot System | Download |
